Project-based layouts

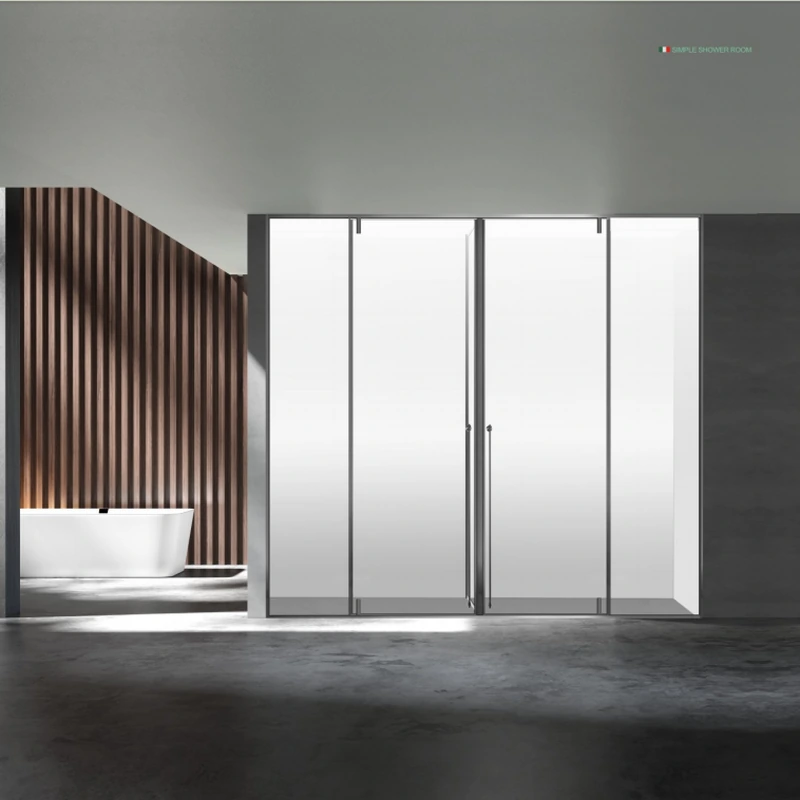

Discuss hinged, pivot, sliding, fixed-panel, walk-in, square, diamond, fan-shaped, and T-type arrangements around the actual bathroom.
Custom glass · Project schedules · Export support
Shower Enclosure Manufacturer
Forge manufactures made-to-order shower enclosure systems for residential, hotel, development, and trade projects. Coordinate openings, glass, frames, hinges or rollers, handles, seals, finishes, quantities, compliance requirements, and export delivery in one project brief.
- Custom hinged, sliding and fixed-panel layouts
- Glass, hardware and finish coordination
- Hotel, project, distributor and OEM support
24+ yearsPublished manufacturing experience
3 basesProduction locations in China
200,000 m²Published combined production footprint
100+ countriesMarkets cited in the company profile
Company figures are first-party statements published by Forge. Review the company profile.
Direct answer
A shower enclosure manufacturer builds project-specific glass and hardware systems around verified openings, finished surfaces, door movement, user clearance, water-control details, quantities, and destination requirements. Forge supports design coordination, manufacturing, inspection, export packing, shipment planning, installation guidance, and after-sales communication.
Measure first, manufacture second
Custom Shower Enclosure Manufacturing for Global Projects
Forge coordinates shower glass, framing, hardware, seals, movement, openings, water-control details, installation interfaces, and room schedules as one package. Final product selection should follow verified site measurements and the destination market’s applicable safety glazing and building requirements.
Glass and hardware coordination
Align glass type, panel sizes, edges, holes, hinges, rollers, handles, profiles, seals, supports, and finish compatibility.
Compliance evidence
State the destination, applicable safety glazing rules, required labels, test reports, tolerances, inspection points, and acceptance documents.
Room schedules and export packing
Coordinate unit labels, protective packing, loading sequence, spare hardware, shipment terms, site receipt, installation guidance, and warranty.
Current shower collection
Custom Glass Shower Enclosure Systems
Use these Forge product records to compare door operation, fixed panels, layouts, profiles, glass, hardware, and finish direction. Final production follows approved measurements, drawings, system limitations, and written specifications.

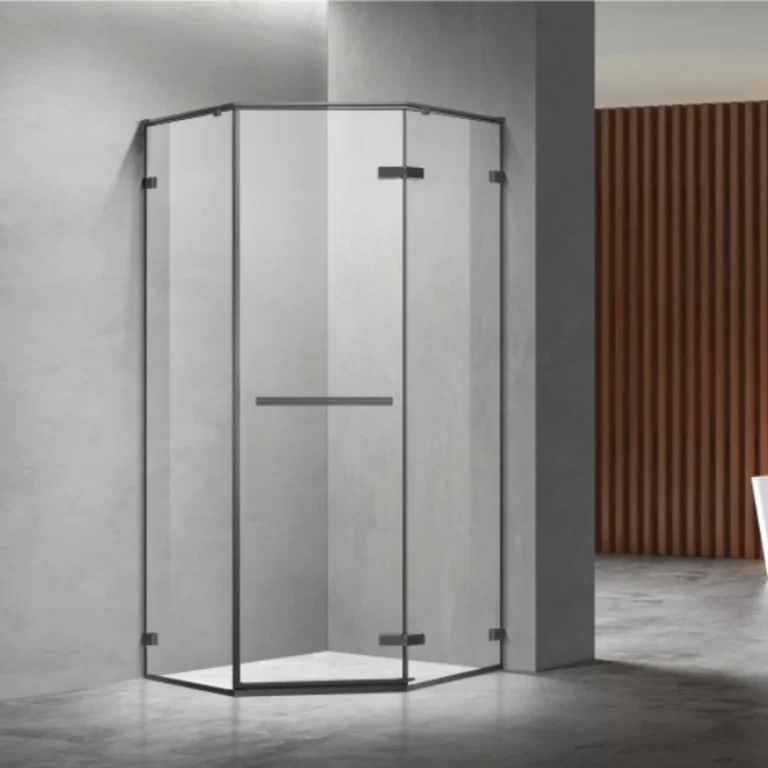

Z003 Diamond-Shaped Two-Fixed One-Open Shower Enclosure
Name: Z003 Diamond-Shaped…
Review system details
Specification before production
What to Specify When Buying Shower Enclosures
A comparable quotation should define the complete glass-and-hardware system and its site interfaces. Use the same information for each supplier so differences in price, compliance, and responsibility are visible.
| Decision area | Information to provide | Approval before production |
|---|---|---|
| Finished opening | Widths and heights at multiple points, wall plumb, floor level, curb or tray | Final site-measure record and dimensioned drawing |
| Layout and movement | Hinged, pivot, sliding, fixed, walk-in, corner or T-type; opening direction | Plan, elevations, clearances and collision review |
| Glass | Safety glass requirement, type, thickness, tint, pattern, coating, edges and holes | Written glass specification, labels and required compliance evidence |
| Hardware and support | Profiles, hinges, rollers, handles, stabilizers, clamps, seals and wall support | Hardware schedule, finish sample and load compatibility |
| Water control | Showerhead position, curb or tray, slope, drainage, gaps and seal expectations | Expected containment and site responsibilities |
| Compliance and inspection | Destination, applicable codes, tests, labels, tolerances and inspection method | Document list and acceptance criteria |
| Project delivery | Room schedule, quantities, destination, target date and site access | Labels, packing, loading, spares and installation scope |
Safety glazing is market-specific
Do not accept “tempered glass” as the complete compliance statement. Match the glass, finished size, fabrication, labeling, supporting test evidence, hardware system, and installation to the destination market. For U.S. projects, architectural glazing requirements include 16 CFR Part 1201; other markets may apply different rules.
From opening schedule to shipment
Shower Enclosure Project Workflow
Define measurement responsibility, compliance evidence, water-containment expectations, installation scope, and supplied-by boundaries before production. Changes after glass fabrication may require remanufacture.
- 01Project briefShare drawings, openings, room schedules, quantities, destination and target date.
- 02Measurement reviewConfirm finished openings, plumb, level, curbs, trays, fixtures and clearances.
- 03System approvalApprove glass, hardware, finishes, movement, seals, drawings and compliance scope.
- 04Production & QCAgree inspection points, labels, evidence, tolerances and corrections.
- 05Packing & shippingCoordinate room labels, protection, sequence, documents, spares and shipment terms.
- 06Installation supportUse approved drawings, hardware instructions, labels and qualified site installers.
Before comparing quotations
Require every supplier to price the same documented system.
- Verified openings and finished surfaces
- Glass specification and compliance evidence
- Hardware, finish and support schedule
- Water-containment expectations
- MOQ, lead time and payment milestones
- Packing, installation, warranty and spares
Procurement answers
Shower Enclosure Manufacturer FAQ
Direct answers for buyers comparing a manufacturer, supplier, factory, or OEM partner.
Reviewed for publication · Updated August 20, 2026
What does a shower enclosure manufacturer provide?
A shower enclosure manufacturer converts verified openings, finished surfaces, glass requirements, door operation, hardware, finishes, water-control details, quantities, and destination into an approved production package. Forge supports design discussion, manufacturing, inspection, export packing, shipment coordination, installation guidance, and after-sales communication.
Which shower enclosure types can be customized?

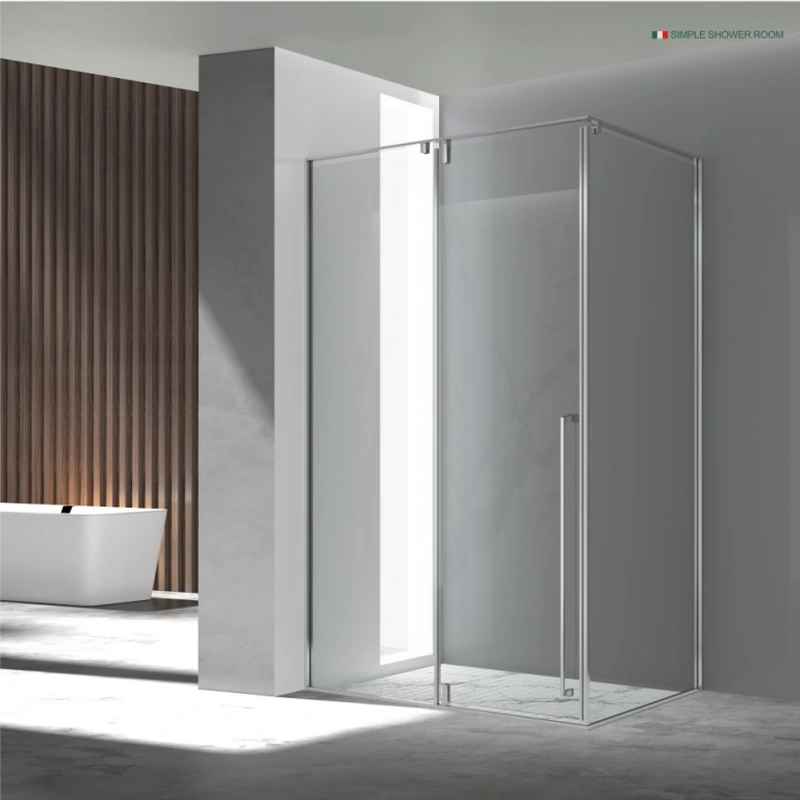

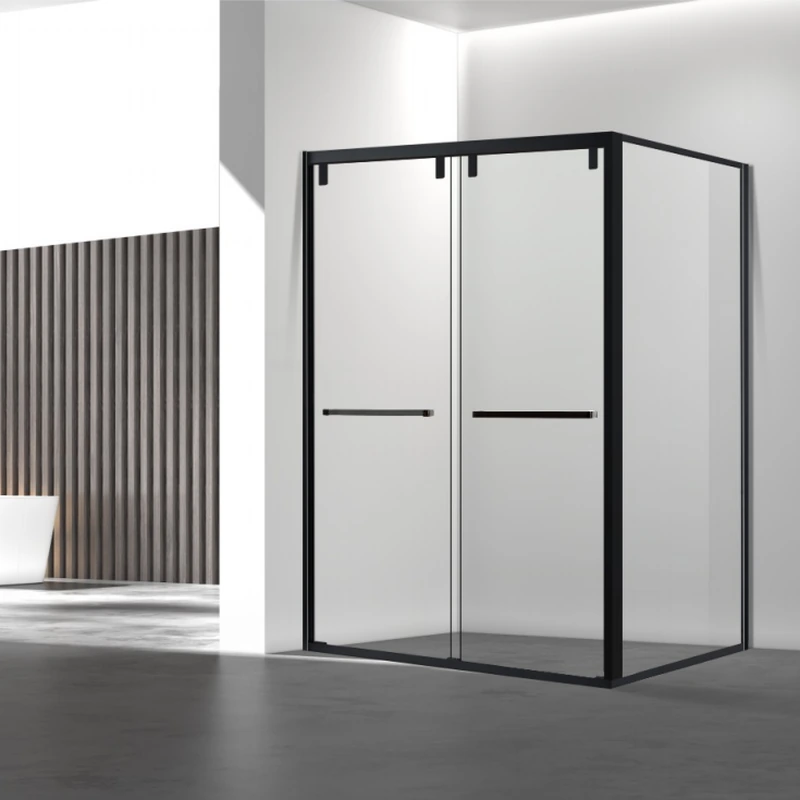

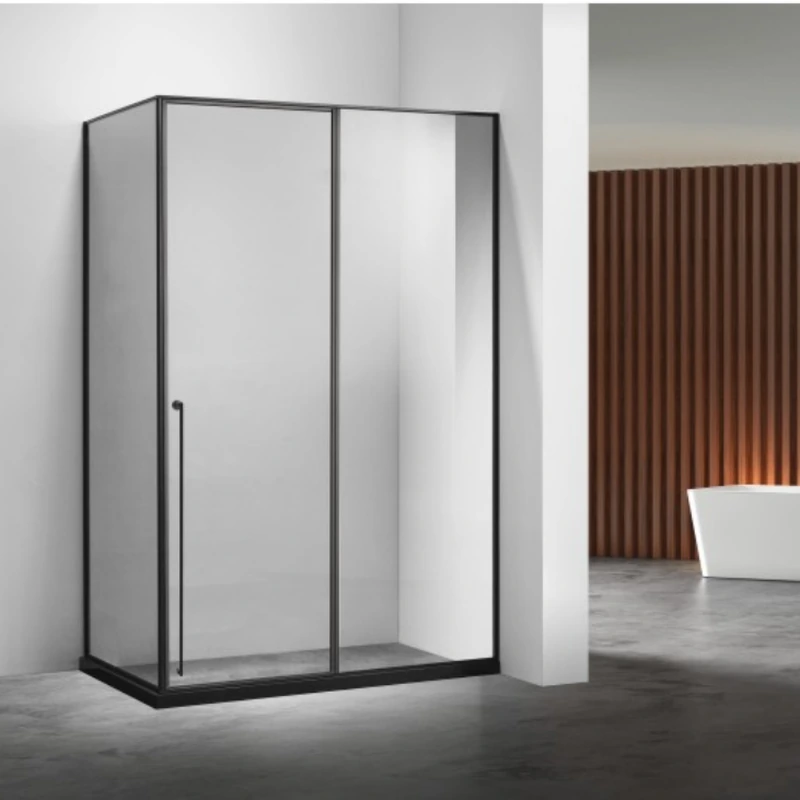

Forge can discuss hinged, pivot, sliding, linked-sliding, fixed-panel, walk-in, square, rectangular, diamond, fan-shaped, and T-type layouts. The suitable arrangement depends on the opening, user clearance, fixtures, wall support, curb or tray, drainage, and local requirements.
What glass thickness should a shower enclosure use?
Glass thickness should not be selected from a generic rule alone. It depends on panel size, support conditions, door weight, hardware capacity, glass type, edge and hole fabrication, applicable safety glazing rules, and the approved system design. Confirm the final specification and supporting test or compliance documents for the destination market.
Are frameless shower enclosures completely watertight?
A frameless enclosure should not be represented as universally watertight. Water containment depends on layout, door direction, gaps, seals, curb or tray geometry, floor slope, showerhead position, drainage, installation tolerances, and user behavior. Agree the expected performance and site responsibilities before production.
What measurements are needed for a factory quotation?
Send opening width and height at multiple points, wall plumb, floor level, curb or tray dimensions, finished surface information, fixture and showerhead positions, door swing or slide direction, handle location, quantity, finish, destination, and applicable code or certification requirements.
Can glass, frames, handles, and hardware finishes be customized?
Yes. Discuss clear, patterned, tinted, or coated glass where available, together with framed or frameless appearance, profiles, hinges, rollers, handles, seals, and finishes such as mirror, matte black, gunmetal, or project-specific colors. Availability and compatibility must be confirmed in the quotation and samples.
What are the MOQ and manufacturing lead time?
MOQ and lead time are project-specific because dimensions, glass, hardware, finish, quantity, testing documents, sample approval, inspection, packing, and destination differ. Request a written quotation and production schedule after the room schedule and technical requirements are sufficiently defined.
Does Forge support hotels, developers, contractors, distributors, and OEM orders?
Forge presents its service for international homeowners, designers, contractors, developers, hospitality projects, distributors, and trade buyers. Confirm project-specific branding, room schedules, samples, compliance documents, inspection, packaging, payment, shipping, installation support, warranty, and spare-part terms in writing.
Start a factory discussion
Request a Custom Shower Enclosure Quote
Send your opening schedule or bathroom drawings, finished dimensions, preferred door operation, glass and hardware requirements, finish, quantity, destination, compliance needs, and target delivery date.
- Attach plans, elevations or opening schedules
- State door movement, glass and finish direction
- List quantities, destination and required standards
